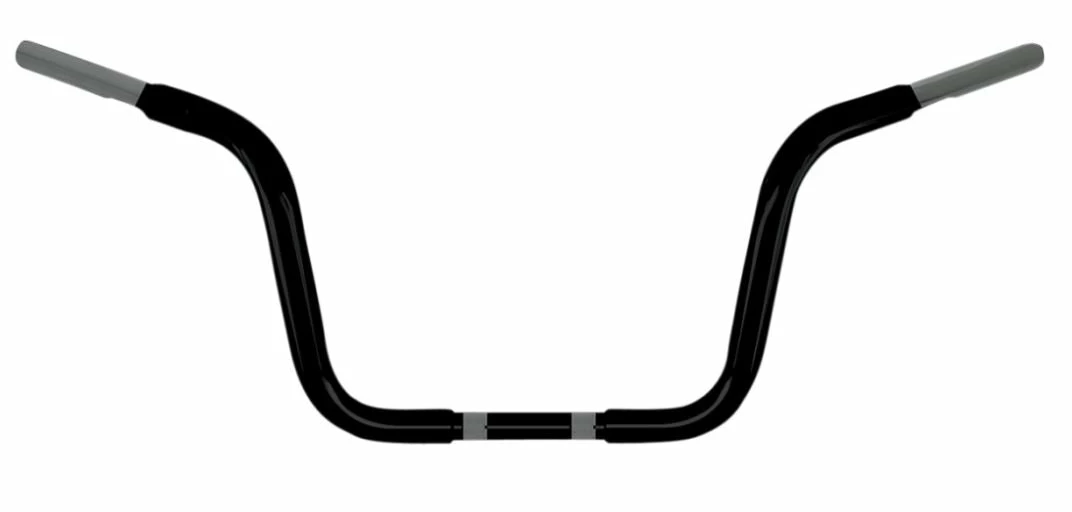

Parts Unlimited Wild 1® Black 1-1/4″ Chubby® Handlebar — Ape Hanger, 0601-1196

Features

• Handlebars are 25% thicker than stock
• All bars are precision machined (not swage formed) at control mounts, providing perfect fit, form and unsurpassed look
• Designed with fluid bends at precise angles for maximum comfort and control
• Work with hydraulic clutch, stock and most custom controls, stock risers and top clamps
• Polished welds and diamond knurled
• All handlebars work with Throttle-By-Wire as well as cable applications
• Made in the U.S.A.
• All bars work with H-D® heated grips
• Not for use with stock risers and handlebar clamp/gauge mount on 883C/1200C models
• Not for FLHT/FLHX models

Specs

PRODUCT NAME	HANDLEBAR
COLOR/FINISH	BLACK / SATIN
BASE COLOR	BLACK
FINISH	SATIN
FEATURES	PRE-DRILLED / KNURLED CENTER / NOTCHED FOR THROTTLE-BY-WIRE
TYPE/BEND	APE HANGER
END RISE	25,5 CM (10″) / 25.5 CM / 10″
WIDTH	91,5 CM (36″) / 36″ / 91.5 CM
CENTER WIDTH	25,5 CM (10″) / 10″ / 25.5 CM
PULLBACK/SWEEP	10″ / 25.5 CM / 25,5 CM (10″)
HANDLEBAR DIAMETER	32 MM / 1-1/4″ / 32 MM (1-1/4″)
CONTROLS DIAMETER	1″ / 25.4 MM / 25,4 MM (1″)
CLAMPING DIAMETER	25,4 MM (1″) / 1″ / 25.4 MM
MATERIAL	STAINLESS STEEL
UNITS	EACH
RIDING STYLE	STREET
RISE	10″ / 25.5 CM / 25,5 CM (10″)
